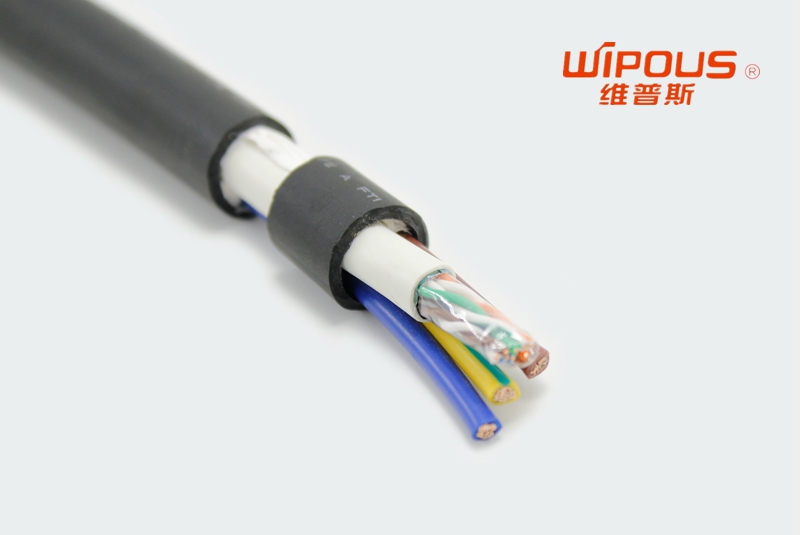

五類銅絲導體
環保PVC絕緣
超柔性混合PVC護套
組合對絞線
產品應用：
喬浦T-HRMC柔性PVC伺服機電纜具有UL&cUL及CE認證可通用于北美和歐洲市場。用于西門子等各大知名品牌伺服機和驅動馬達。產品具有較高的柔韌性，特制PVC護套，耐油，耐彎曲，耐震動。僅合適室內安裝。當外部有電磁干擾時，推薦使用帶屏蔽線纜喬浦T-HRMCS系列產品。
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| T-HRMC | (3+T)*18AWG | (3+T)*1.0 | 10.4 | 176.0 |
| T-HRMC | (3+T)*16AWG | (3+T)*1.5 | 11.2 | 213.5 |
| T-HRMC | (3+T)*14AWG | (3+T)*2.5 | 12.1 | 259.9 |
| T-HRMC | (3+T)*12AWG | (3+T)*4 | 13.3 | 340.4 |
| T-HRMC | (3+T)*10AWG | (3+T)*6 | 16.3 | 523.1 |
| T-HRMC | (3+T)*8AWG | (3+T)*10 | 19.7 | 787.0 |
| T-HRMC | (3+T)*6AWG | (3+T)*16 | 24.3 | 1151.6 |
| T-HRMC | (3+T)*4AWG | (3+T)*25 | 27.8 | 1569.7 |
| T-HRMC | (3+T)*2AWG | (3+T)*35 | 34.7 | 2533.4 |
| T-HRMC | (3+T)*1/0AWG | (3+T)*50 | 41.0 | 3608.2 |
| T-HRMC | (3+T)*2/0AWG | (3+T)*70 | 44.7 | 4402.0 |
| T-HRMC | (3+T)*3/0AWG | (3+T)*95 | 51.2 | 5799.5 |
| T-HRMC | (3+T)*18AWG+2*20AWG | (3+T)*1.0+2*0.75 | 10.5 | 169.5 |
| T-HRMC | (3+T)*16AWG+2*18AWG | (3+T)*1.5+2*1.0 | 11.2 | 207.5 |
| T-HRMC | (3+T)*14AWG+2*18AWG | (3+T)*2.5+2*1.0 | 12.2 | 256.4 |
| T-HRMC | (3+T)*12AWG+2*16AWG | (3+T)*4+2*1.5 | 13.4 | 340.4 |
| T-HRMC | (3+T)*10AWG+2*16AWG | (3+T)*6+2*1.5 | 16.4 | 480.1 |
| T-HRMC | (3+T)*8AWG+2*16AWG | (3+T)*10+2*1.5 | 19.8 | 714.3 |
| T-HRMC | (3+T)*6AWG+2*16AWG | (3+T)*16+2*1.5 | 24.4 | 1089.4 |
| T-HRMC | (3+T)*4AWG+2*16AWG | (3+T)*25+2*1.5 | 27.9 | 1568.5 |
| T-HRMC | (3+T)*2AWG+2*16AWG | (3+T)*35+2*1.5 | 34.9 | 2903.7 |
| T-HRMC | (3+T)*1/0AWG+2*16AWG | (3+T)*50+2*1.5 | 41.2 | 4108.8 |
| T-HRMC | (3+T)*18AWG+2*2*20AWG | (3+T)*1.0+2*2*0.75 | 11.2 | 182.3 |
| T-HRMC | (3+T)*16AWG+2*2*18AWG | (3+T)*1.5+2*2*1.0 | 12.1 | 229.9 |
| T-HRMC | (3+T)*14AWG+2*2*18AWG | (3+T)*2.5+2*2*1.0 | 13.1 | 280.6 |
| T-HRMC | (3+T)*12AWG+2*2*16AWG | (3+T)*4+2*2*1.5 | 14.5 | 373.2 |
| T-HRMC | (3+T)*10AWG+2*2*16AWG | (3+T)*6+2*2*1.5 | 17.8 | 515.8 |
| T-HRMC | (3+T)*8AWG+2*2*16AWG | (3+T)*10+2*2*1.5 | 21.6 | 756.7 |
| T-HRMC | (3+T)*6AWG+2*2*16AWG | (3+T)*16+2*2*1.5 | 26.7 | 1169.9 |
| T-HRMC | (3+T)*4AWG+2*2*16AWG | (3+T)*25+2*2*1.5 | 30.9 | 1913.4 |
| T-HRMC | (3+T)*2AWG+2*2*16AWG | (3+T)*35+2*2*1.5 | 38.5 | 2965.1 |
| T-HRMC | (3+T)*1/0AWG+2*2*16AWG | (3+T)*50+2*2*1.5 | 45.6 | 4033.3 |
